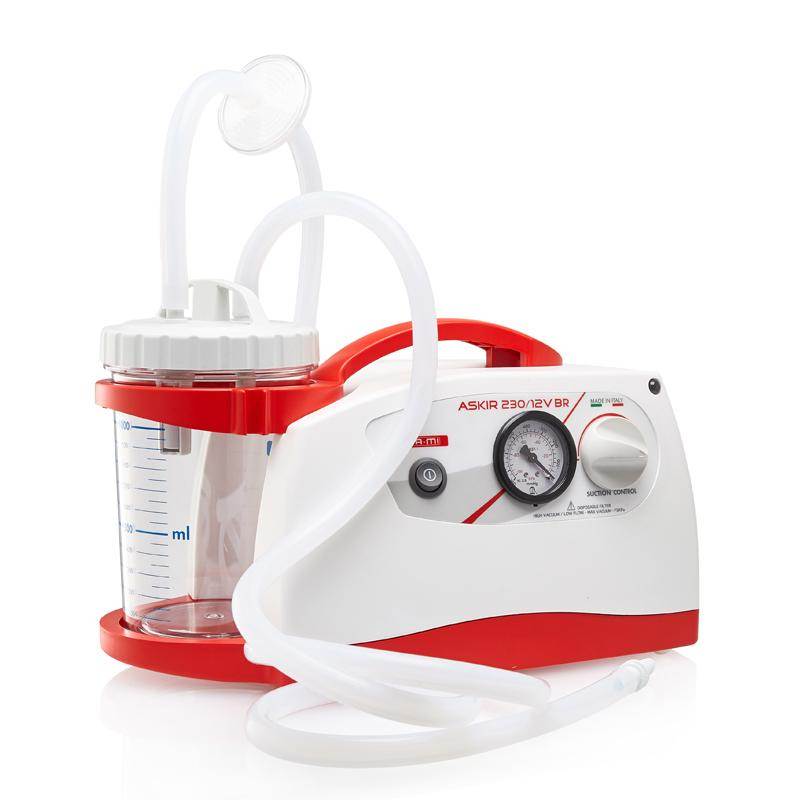

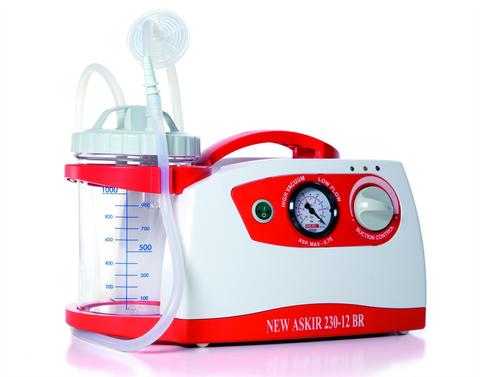

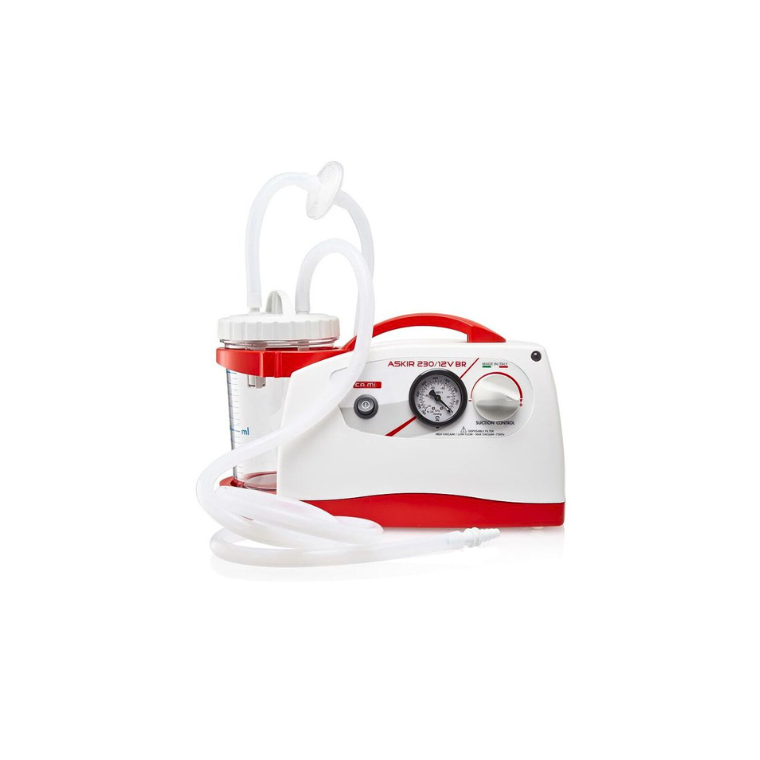

Surgical Suction Askir 230 with Battery Backup (12V)

Long Description

The Surgical Suction Askir 230 – 12V with Battery Backup is a high-vacuum, portable suction unit designed for oral, nasal, and tracheal aspiration in both adults and children. Engineered for emergency vehicles, mobile care, and home healthcare, it offers mixed power supply options: 230V AC mains, 12V DC car adapter, and internal rechargeable battery.

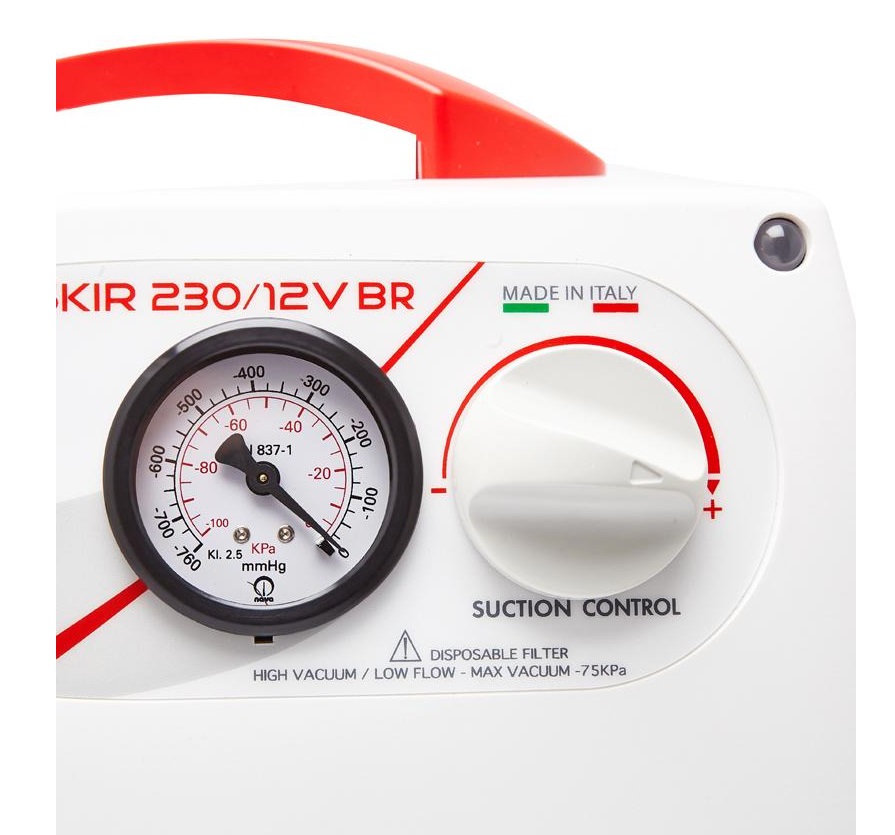

Its oil-less piston pump delivers a flow rate of 16 liters per minute and a vacuum capacity of −0.75 BAR, ensuring efficient fluid aspiration during transport or procedures. The LED control panel displays operational status and battery charge levels, while the vacuum regulator allows precise suction control.

The unit supports continuous operation when connected to mains and offers 45–80 minutes of autonomy on battery, with a recharge time of approximately 2–4 hours. It complies with EN 60601-1 and ISO 10079-1 standards, making it safe and reliable for clinical and field use.

Specifications:

• Model: Askir 230 – 12V BR
• Flow Rate: 16L/min
• Max Vacuum: −0.75 BAR (−75kPa / −563mmHg)
• Power Supply:
  • AC/DC Adapter (100–240V ~ 50/60Hz – 100VA)
  • Internal Rechargeable Pb Battery (12V – 4A)

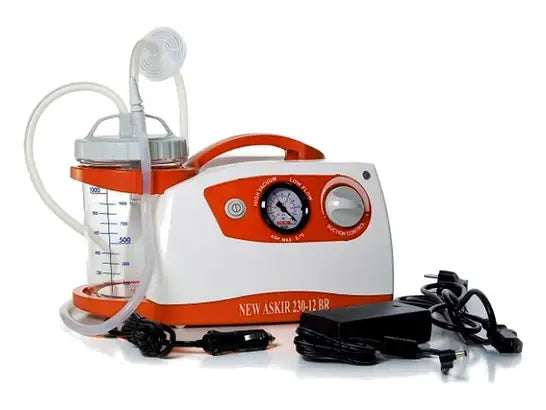

  • 12V Car Adapter
• Battery Autonomy: 45–80 minutes
• Recharge Time: 120–240 minutes
• Noise Level: ~63 dB
• Dimensions: 350mm (L) × 210mm (H) × 180mm (W)
• Weight: 4.9kg
• Protection Rating: IP21
• Safety Standards: CE Class II, EN 60601-1, ISO 10079-1
• Accessories:
  • 1L autoclavable jar (max temp. 120°C)
  • Safety float cover
  • Silicone tubing (6 × 10mm)
  • Tube connectors
  • CH20 aspiration probe
  • Antibacterial & hydrophobic filter
  • AC/DC universal adapter + 12V car cable

Applications:

• Ambulance and emergency vehicle deployment
• Crash carts and mobile clinics
• Post-operative therapy and airway management
• Home healthcare and field hospitals
